H301-K-FRAME

Stage compatibility: fits in the following stages with 160x110 (k-frame) opening - comes with Sliding Lid
  • ASI: all models, including z-piezo
  • Leica: all models with 160x110 opening
  • Ludl: all models with 160x110 opening
  • Marzhauser: all models
  • Olympus: all models with 160x110 opening
  • Prior: H107
  • Zeiss: all models with 160x110 opening
Magnetic interchangeable inserts allow to use:
  • 35/60 mm Petri
  • 1x3 in. / 1x2 in. chambered slides
  • 6-12-24-48-96 MW plates
Features:
  • Sliding lid for easy pipetting
  • Optional lids available for Kohler Illumination, Laser Safety, Injection during imaging
  • Lid: both the glass and the metal frame encasing the glass are heated. The metal frame uses electric resistances, and the glass is coated with Indium Tin Oxide (ITO) which is optically transparent and electrically conductive
  • Base: the metal frame of the base of the chamber is heated by means of electric resistances
  • Flexible chamber height thanks to the removable chamber riser and the optional Koheler Lid
  • Magnets allow easy interchange of chamber inserts
  • Magnetic locks hold Petri, Slides and MW in correct position inside the chamber

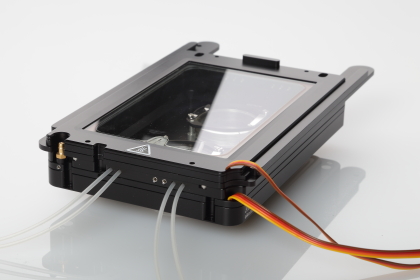

  • Perfusion holes: 12 channels for 2.5mm O.D. tubings are available in the chamber riser

Available Inserts

6MW 6 well plates 6-MW.JPG
12MW 12 well plates 12-MW.JPG
24MW 24 well plates 24MW.JPG
24MW-NUNC 24-well NUNC/GREINER plates 24MW-NUNC.JPG
48MW 48-well plates 48MW.JPG
96MW 96-well plates. 96MW.JPG
MW-OIL Open frame to image multi well plates with oil immersion objectives MW-OIL.JPG
1x35-M #1 35mm Petri-dish 1x35-M.JPG
1xGS-M #1 1x3in. chamberslide 1xGS-M.JPG
1xLABTEK-M #1 Lab-Tek 1x2 in. chambered cover glass 1xLABTEK-M.JPG
1xLABTEK-II-M #1 Lab-Tek II 1x2 in. chambered cover glass 1xLABTEK-II-M.JPG
1x60-M #1 60mm Petri-dish 1x60-M.JPG
1xT25-M #1 Nunc and Greiner T25 flask 1xT25-M.JPG
2x35-M #2 35mm Petri-dish 2x35-M.JPG
2xGS-M #2 1x3in. chamberslides 2xGS-M.JPG
2xLABTEK-M #2 Lab-Tek 1x2 in. chambered cover glass 2xLABTEK-M.JPG
2xLABTEK-II-M #2 Lab-Tek II 1x2 in. chambered cover glass 2xLABTEK-II-M.JPG
2x60-M #2 60mm Petri-dish 2x60-M.JPG
4x35-M #4 35mm Petri-dish 4x35-M.JPG
GS35-M #1 1x3in. chamberslide and #2 35mm Petri-dish GS35-M.JPG
LABTEK-35-M #1 Lab-Tek 1x2 in. chambered cover glass and #2 35mm Petri-dish LABTEK-35-M.JPG
LABTEK-II-35-M #1 Lab-Tek II 1x2 in. chambered cover glass and #2 35mm Petri-dish LABTEK-II-35-M.JPG
LABTEK-60-M #1 Lab-Tek 1x2 in. chambered cover glass and #1 60mm Petri-dish LABTEK-60-M.JPG
LABTEK-II-60-M #1 Lab-Tek II 1x2 in. chambered cover glass and #1 60mm Petri-dish LABTEK-II-60-M.JPG
GS60-M #1 1x3in. chamberslide and #1 60mm Petri-dish GS60-M.JPG
6035-M #1 60mm Petri-dish and #1 35mm Petri-dish 6035-M.JPG

Available LIDs

H301-KOEHLER LID Glass lid that reduces the height of the chamber and allows to work under Koehler illumination. Minimum condenser working distance (without chamber riser): 22mm H301-KOEHLER-LID.JPG
H301-INJECTION-LID Glass lid with two small openings (sealed with flexible plastic) to allow injection or permanent access to the specimen Note: compatible only with specimen holder 1x35 H301-INJECTION-LID.JPG
H301-LASER-

INTERLOCK-LID
Glass lid with a safety switch that connects to the laser box. The switch turns off the laser, when the lid is lifted Note: compatible only with specimen holder 1x35 H301-LASER-INTERLOCK-LID.JPG

H301-K-FRAME-[SLIDING LID]_600x600 (2).jpg

H301-K-FRAME with Sliding Lid

H301-K-FRAME-[KOEHLER LID]_600x600.jpg

H301-K-FRAME with Koehler Lid


H301-K-FRAME - Available Lids

H301-K-FRAME-[SLIDING LID]-[DIMENSIONS]_600x600.jpg

H301-K-FRAME with Sliding Lid - Dimensions

H301-K-FRAME-[KOEHLER LID]-[DIMENSIONS]_600x600.jpg

H301-K-FRAME with Koehler Lid - Dimensions

H301-K-FRAME-[MAGNETIC LOCKS]_600x600.jpg

H301-K-FRAME - Magnetic sample locks


H301-K-FRAME - Magnetic inserts


H301-K-FRAME - Magnetic insterts


H301-K-FRAME - 6MW Plate - requires chamber-riser
