H401-LEICA-M-HL-GLASS

The Glass T Plate fits on the Leica M stereomicroscope base and creates a flat warm transparent surface. It employs Indium Tin Oxide (ITO) coating to obtain uniform heating throughout the glass surface and a surface sensor to ensure the highest accuracy on temperature reading.

The glass is chemically strengthened and protected by a rigid aluminum frame.

It requires H401-T-CONTROLLER or H401-T-PENNY.

Features

  • Leica M stereomicroscopes with transmitted light base HL
  • Temperature range: from ambient to 60°C
  • Accuracy on specimen: ±0.3°C
  • ITO glass coating ensures uniform glass heating
  • Glass thickness: 1 mm
  • Aluminum frame improves rigidity
  • Chemical glass strengthening ensures highest resistance
Glass Plate in XY Stage

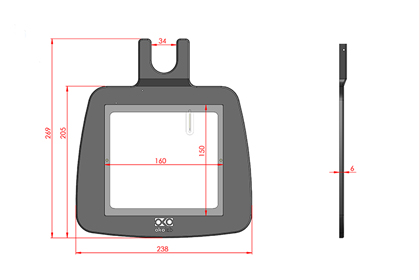

Dimensions

H401-T-PENNY - Accuracy made simple

H401-T-PENNY

Single Channel

Compact

Affordable



H401-T-CONTROLLER
H401-T-CONTROLLER - The most advanced dual channel controller

H401-T-CONTROLLER

2-Channel Temperature Controller with 4.3'' touch screen interface compatible with all H401 heating devices. One controller can control independently up to two items.

External temperature sensor (included) and self calibration routines allows easy calibration of the heating devices for the highest accuracy on sample temperature.

On board data logging and download procedures to USB drives allow to record temperature as a function of time and to log calibration events and alarms.

The controller is equipped with password protected routines to re-calibrate the sensors against certified thermometers.

Features

  • T - range: from ambient to 60°C
  • T - accuracy on specimen: ± 0.3°C
  • 4.3'' touch screen interface
  • External T - sensor (included)
  • On-board Data logging and download routines to USB drive
  • On-board logging of calibration and alarm events
  • Alarm buzzer and External Alarm Connector
  • One controllers can control independently up to two devices
  • Self calibration routines allow to improve temperature accuracy
  • Password protected procedure for periodic calibration against certified thermometer

Touch Pad Interface

Touch Pad Interface

Beautifully designed, simple to use and very compact.

T - range: from ambient to 60°C

4.3'' touch screen interface

Beautifully designed, simple to use and very compact.

External T - sensor (included)

On-board Data logging and download routines to USB drive

One controllers can control independently up to two devices

Self calibration routines allow to improve temperature accuracy

Clamp on stage T-Pad + Glass plate

Take advantage of the dual channel option

One channel controls the metal T-Pad.

The other channel controls the Glass Plate.

On board Data Logging / Download to USB

Data Logging

On-Board Data Logging - stored in local memory

A simple procedure allows to download data to USB.






H401-T-PENNY

H401-T-PENNY is a compact single-channel Temperature Controller compatible with any OKOLAB heating device that combines performance and simplicity at an unbeatable price.

Features

  • Temperature range: from ambient to 60°C
  • Set point resolution: 0.1°C
  • Calibration via addition of offset
  • Maximum Output: 60 W
  • Dimensions: 83.65x45.05x20.20 mm
  • Weight: 47.50 g
H401-t-controller-penny-in-hand-480-320
H401-T-PENNY
H401-t-controller-penny-h401-nikon-ts2r-480-320
Penny + T-Glass Plate
H401-t-controller-penny-t-pad
Penny + T-PAD
H401-t-controller-penny-glass-table-480-320
Penny + T-Glass Table
