H101-MIZAR-TILT

Specially designed by Okolab for heating and cooling live specimen experiments with the Mizar Tilt modular light sheet system.
The chamber can fit:
  • 35 mm Petri
  • Mizar cube holder with or without guide arm
  • 1x3 in. chambered slides
Features:
  • Accepts Mizar cube holder and 1" x 3" slide/chamber slide by default and also 22x40 mm coverslip and 35mm petri dish with dedicated holders
  • Dedicated light trap and magnetic clamps included with each specimen holder type
  • Magnets allow easy interchange of chamber inserts
H101-MIZAR-TILT

Available Inserts

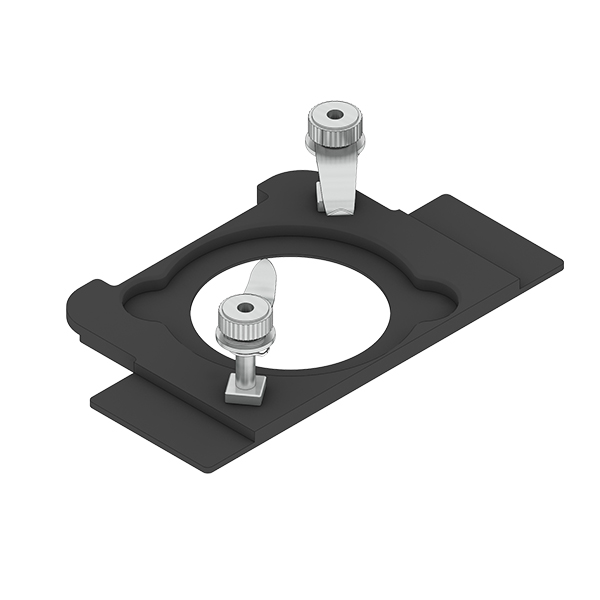

H101-1x35-M single #1 35mm Petri-dish MIZAR-1x35-H101.jpg

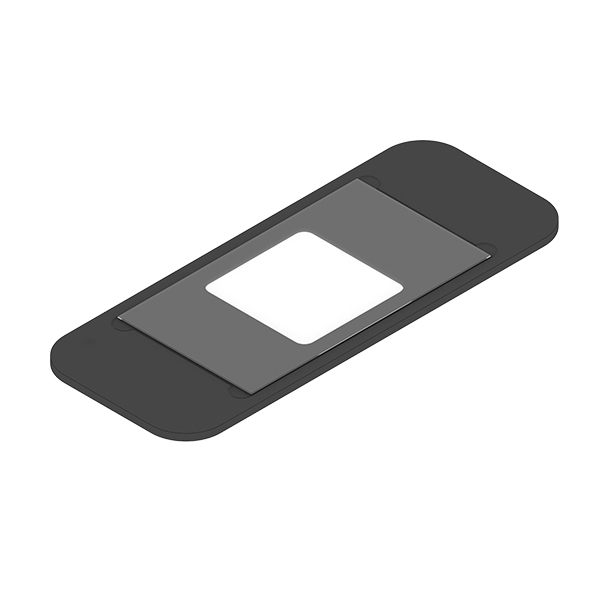

MIZAR-1x22by40 #1 22x40 mm coverslip MIZAR-1x22by40.jpg
H101-MIZAR-TILT-components
H101-MIZAR-TILT Components
H101-MIZAR-TILT-dimensions
H101-MIZAR-TILT Dimensions
H101-MIZAR-TILT Light Traps
